Calculation Transformers 2.0.3

for Vertex Impress Calypso

Application to the Calculation of small transformers / autotransformers

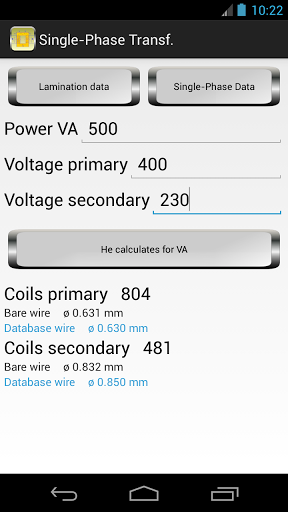

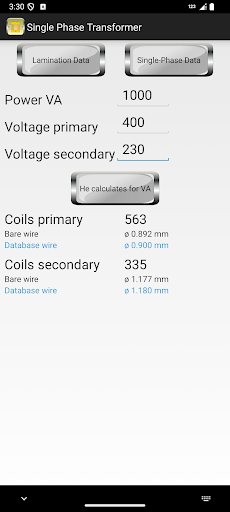

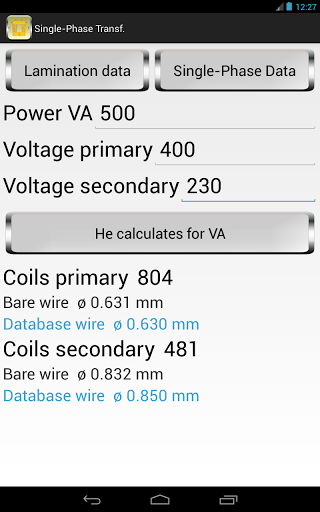

The app calculates the turns ratio for the construction of single-phase transformers / autotransformers.

It makes use of two methods for the calculation.

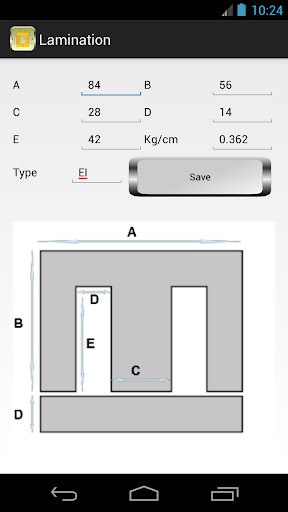

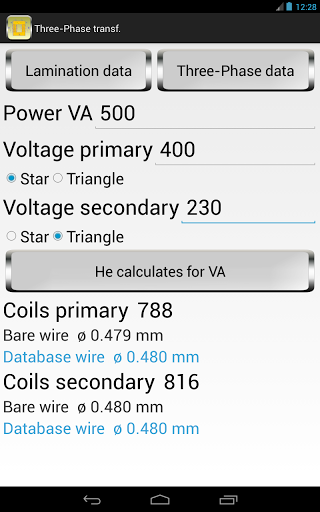

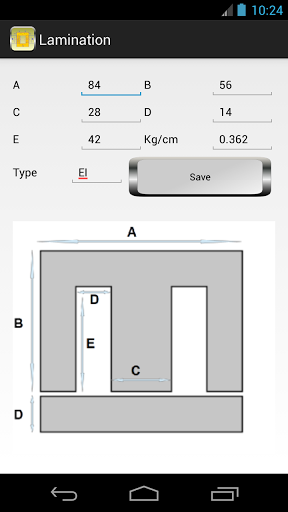

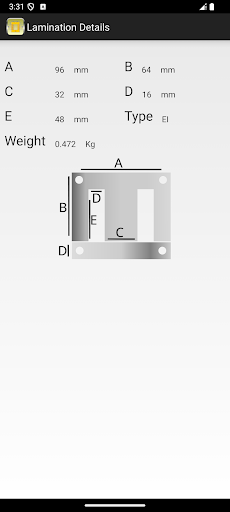

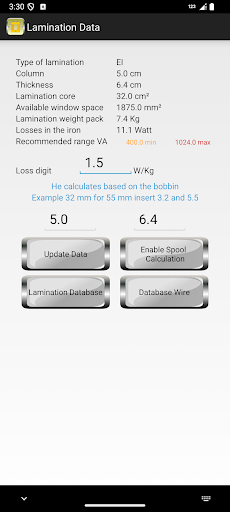

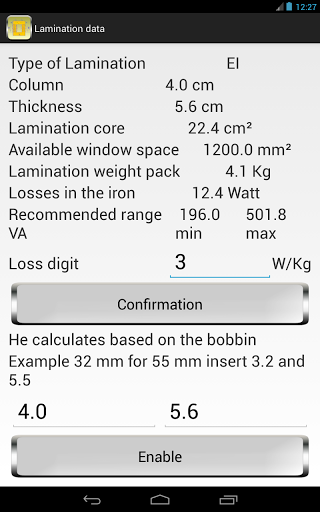

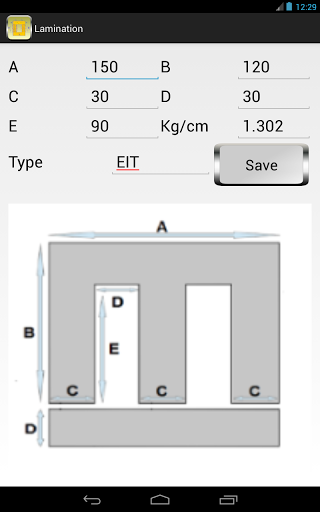

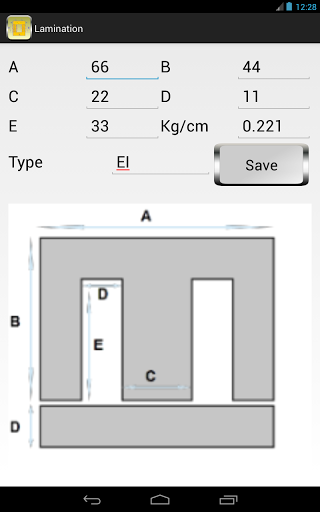

One on the power Va, the app returns over the turns ratio, wire section also the type of plate to be used is the thickness of the package.

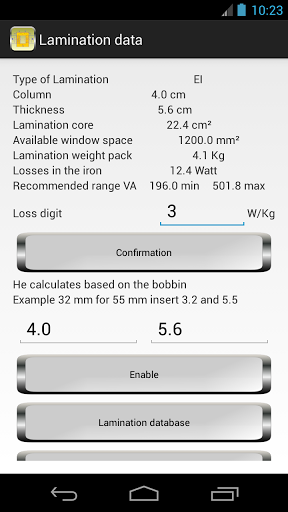

One according to the size of the spool.

The app calculates the power of the minimum and maximum should be given guidance on the kind of spool, handing you back turns ratio and section thread

> DECLARATION OF NOT TAKING RESPONSIBILITY '
> 1.1 The information contained in the application are made up of the author's self-processing, sources and publicly available data.
> 1.2 The above information may contain technical inaccuracies and / or mistakes and everything that appears in the application is provided "as is" without warranty of any kind, express or implied.
> 1.3 Program author does not give any guarantee on the accuracy of the contents. Assumes no responsibility for any direct and indirect damage caused by the use of the information provided is use application.
> 1.4 The author can not, under any circumstances, be held responsible for damages or losses of any nature that the User assumes to have suffered for the use of information contained in this application.
